In bacterial endotoxin testing, the TAL/LAL Reagent serves as an essential analytical tool for ensuring the safety of pharmaceuticals, biological products, medical devices, and related materials. Different testing requirements necessitate distinct analytical approaches, with the gel-clot assay and kinetic chromogenic assay being the two most widely adopted methods.
Selecting the appropriate TAL/LAL Reagent depends on a balanced assessment of testing scale, cost considerations, laboratory instrumentation, and analytical objectives. The following guide presents a detailed comparison of these two assay types, covering their technical principles, operational workflows, and application scenarios.

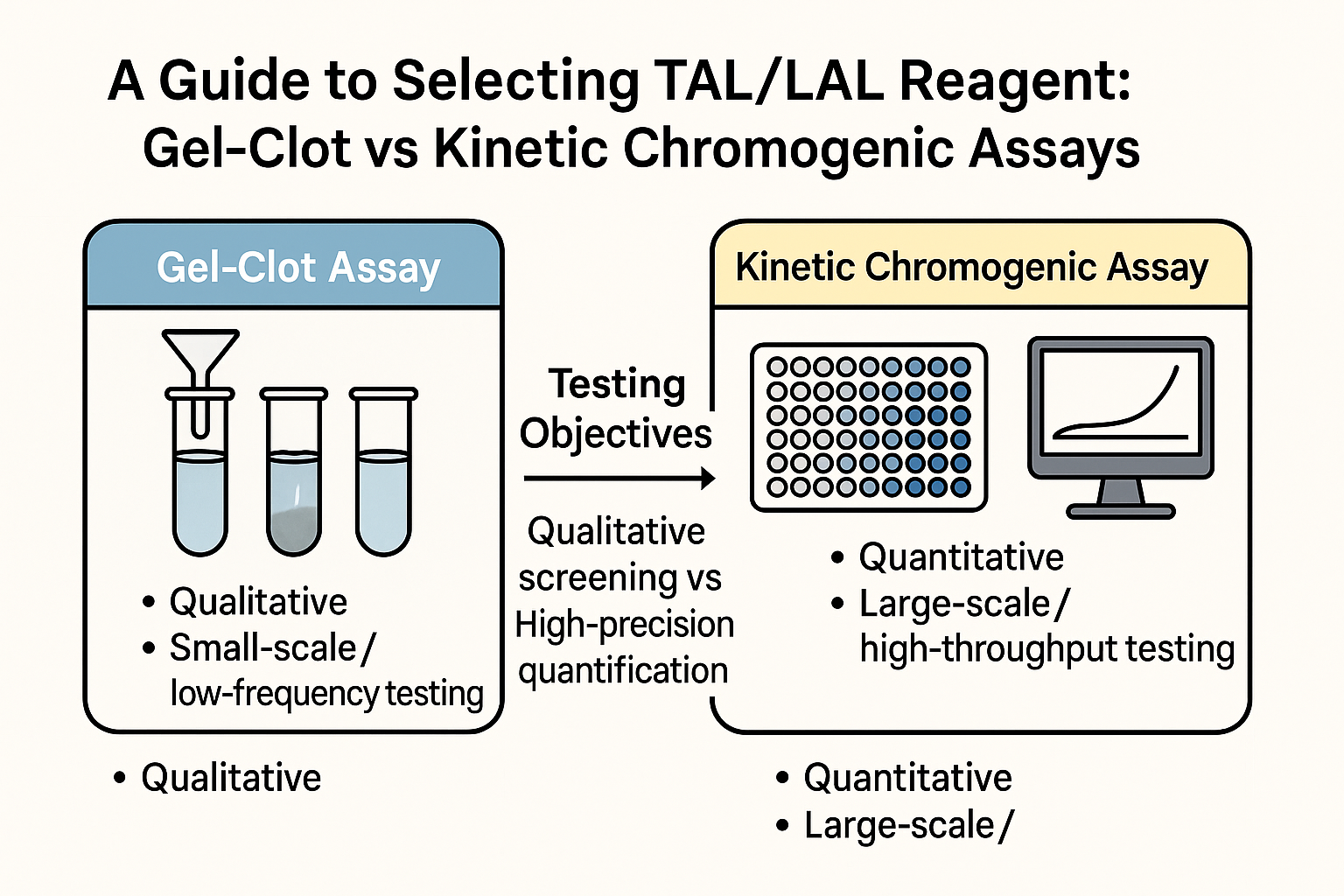

I. Core Differences Between Gel-Clot and Kinetic Chromogenic Assays
1. Testing Objectives and Output: Qualitative vs. Quantitative Determination
The gel-clot TAL/LAL Reagent is primarily designed for qualitative endotoxin testing. It determines whether the endotoxin concentration in a sample exceeds the assay’s sensitivity limit (for instance, FireGene’s FGGC003-10 has a detection limit of 0.03 EU/mL). This method is ideal for limit testing, such as verifying that endotoxin levels in pharmaceutical products remain below specification before release, or for detecting initial contamination in medical devices.
Result interpretation is straightforward: after incubation, the reaction tube is inverted 180 degrees. The formation of a firm gel indicates a positive result (endotoxin ≥ limit), whereas the absence of gel indicates a negative result (endotoxin < limit). No specialized instruments or data processing are required, making this approach simple and reliable for routine screening.
By contrast, the kinetic chromogenic TAL/LAL Reagent enables quantitative as well as qualitative analysis. It not only confirms the presence of endotoxin but also accurately determines its concentration by monitoring changes in absorbance. For example, FireGene’s FG-XSF005 kit offers a detection limit as low as 0.005 EU/mL with a measurement range of 0.005–10 EU/mL.
This method is best suited for applications requiring high-precision quantification, such as tracking endotoxin levels during vaccine development or comparing batch-to-batch variation in biological products. The principle relies on an enzyme-catalyzed chromogenic reaction: endotoxin activates a coagulation-factor cascade in the TAL/LAL Reagent, which hydrolyzes a chromogenic substrate to release p-nitroaniline (pNA). The rate of absorbance increase at 405 nm is measured and compared against a standard curve, providing quantitative, data-supported results.
2. Testing Scale and Cost Efficiency
The gel-clot assay is most suitable for small-scale or low-frequency testing. Kits are typically supplied as pre-filled reaction tubes (e.g., 10 tests per kit), with a fixed per-test cost and minimal operational requirements. Since the method requires only a constant-temperature water bath and no analytical instruments, it offers a cost-effective solution for laboratories performing fewer than 20 samples per run or conducting occasional screening tests.
The kinetic chromogenic assay, on the other hand, is optimized for large-scale or high-throughput testing. Using a 96-well microplate format (as in FireGene’s FG-XSF005 kit), a single plate can process 21–70 samples, while multiple plates may be analyzed sequentially or in parallel. When testing more than 30 samples per batch, the cost per sample becomes significantly lower than that of the gel-clot method. However, this approach requires a higher initial investment in a microplate reader, making it more appropriate for laboratories that conduct routine, quantitative endotoxin testing rather than short-term pilot studies.
3. Instrumentation Requirements
Instrumentation represents a key distinction between the two methods.
The gel-clot assay has minimal equipment demands—only a water bath capable of maintaining a temperature of 37 °C ± 1 °C is required. The reaction is incubated for 60 ± 2 minutes to ensure adequate interaction between endotoxin and the TAL/LAL Reagent. Because of its simplicity, the gel-clot assay is ideal for laboratories with limited budgets, minimal infrastructure, or for on-site rapid testing.
In contrast, the kinetic chromogenic assay requires a microplate reader with incubation, plate-shaking, and kinetic reading capabilities, supporting absorbance measurements at 405 nm. The reader maintains the incubation temperature at 37 °C while continuously monitoring absorbance changes over 30–90 minutes, depending on the chosen mode. Software integration is necessary to generate standard curves and calculate endotoxin concentrations. Laboratories may further automate liquid handling to enhance efficiency, though this increases equipment cost. The kinetic method is therefore most suitable for laboratories already equipped with compatible microplate readers.
II. Workflow of the Kinetic Chromogenic TAL/LAL Reagent
Using FireGene’s FG-XSF005 kit as an example, the standard workflow comprises four main stages: sample preparation, reagent preparation, reaction detection, and result calculation.
1. Sample and Reagent Preparation
Calculate the Maximum Valid Dilution (MVD) according to the endotoxin limit (L). Dilute the sample with pyrogen-free water (e.g., R3 water provided in the kit) so that the expected endotoxin concentration falls within the range of 0.005–10 EU/mL. Prepare standard endotoxin solutions by reconstituting the R2 vial with 1.5 mL of pyrogen-free water and serially diluting to 10, 1, 0.1, and 0.01 EU/mL. Dissolve the R1 main reagent with 2.6 mL of R4 reconstitution buffer, mix thoroughly, and allow to stand before use.
2. Sample Loading and Incubation
Pipette 100 µL of each standard, negative control (pyrogen-free water), or test sample into the designated wells of a 96-well plate (in duplicate). Add 100 µL of reconstituted main reagent to each well, gently shake for 5–10 seconds to mix, and place the plate into the microplate reader. Incubate at 37 °C and initiate the kinetic reading program at 405 nm. The total run time is typically 90 minutes, though a rapid-mode program may shorten it to about 30 minutes.
3. Data Processing and Result Interpretation
The microplate reader software automatically constructs a standard curve in the form log T = b log C + a (where T is reaction time, C is endotoxin concentration, b is slope, and a is intercept). The linear correlation coefficient (|r|) must be ≥ 0.98 to validate the test. The sample’s reaction time is then substituted into the equation to calculate endotoxin concentration. The negative control must yield a T value greater than that of the lowest standard to confirm validity.
4. Interference Verification (If Applicable)
For new or complex matrices (e.g., containing metal ions or surfactants), interference testing should be performed. Spike the sample with a known concentration of endotoxin (λm), then calculate recovery using:
R = [(measured concentration – background concentration) / λm] × 100 %.
If recovery (R) falls between 50 % and 200 %, the sample is interference-free. Otherwise, dilute or pre-treat the sample and repeat testing until acceptable recovery is achieved.
III. Selection Strategy: Choosing the Right TAL/LAL Reagent
For laboratories new to endotoxin testing, the gel-clot TAL/LAL Reagent (e.g., FireGene FGGC003-10, 0.03 EU/mL sensitivity) is recommended as the starting point. It requires only three basic steps—mixing the sample with reagent, incubating in a water bath, and visually interpreting results. No specialized training or analytical software is needed, and small-volume kits (10 tests/kit) are cost-effective for initial verification, minimizing waste.
The kinetic chromogenic assay becomes preferable when quantitative accuracy is required, when testing involves more than 20 samples per run, or when a microplate reader is already available. Moreover, if a sensitivity below 0.03 EU/mL is required (e.g., 0.005 EU/mL), only the kinetic chromogenic method can meet such stringent detection demands.
IV. Application Scope and Special Considerations
1. Detection Target: Specific for Bacterial Endotoxin
The TAL/LAL Reagent specifically detects bacterial endotoxin, a lipopolysaccharide component of the outer membrane of Gram-negative bacteria. It does not cross-react with components of Gram-positive bacteria, mycotoxins, or viruses. Consequently, it provides highly selective and accurate detection for applications such as:
● Sterility assurance testing for injectables, ophthalmic preparations, and biological products;
● Quality control of medical devices (syringes, dialyzers, implants);
● Monitoring of environmental and process water (purified water, water for injection).
2. Verification of Disinfection Equipment
While the TAL/LAL Reagent cannot directly test disinfection equipment, it can indirectly evaluate disinfection efficacy through carrier-based simulation. Carriers (e.g., stainless-steel or glass plates) are spiked with a known endotoxin concentration, processed in an oven or autoclave under standard conditions, and subsequently tested for residual endotoxin. A negative result (endotoxin < limit) indicates effective inactivation.
Different disinfection methods influence recovery: dry-heat treatment may leave organic residues requiring thorough elution with pyrogen-free water, whereas moist-heat sterilization allows easier recovery and higher accuracy. For rigorous validation, a reagent sensitivity of 0.03 EU/mL or lower is recommended.
Conclusion
Both gel-clot and kinetic chromogenic TAL/LAL Reagent assays play indispensable roles in bacterial endotoxin testing. The gel-clot method offers simplicity, low cost, and suitability for qualitative screening, while the kinetic chromogenic assay provides precise quantification, high throughput, and data traceability.
Selecting the right TAL/LAL Reagent depends on your laboratory’s testing objectives, sample volume, available instrumentation, and required detection limit. By aligning these factors with FireGene’s product line, users can achieve optimal performance, regulatory compliance, and confidence in endotoxin control.
